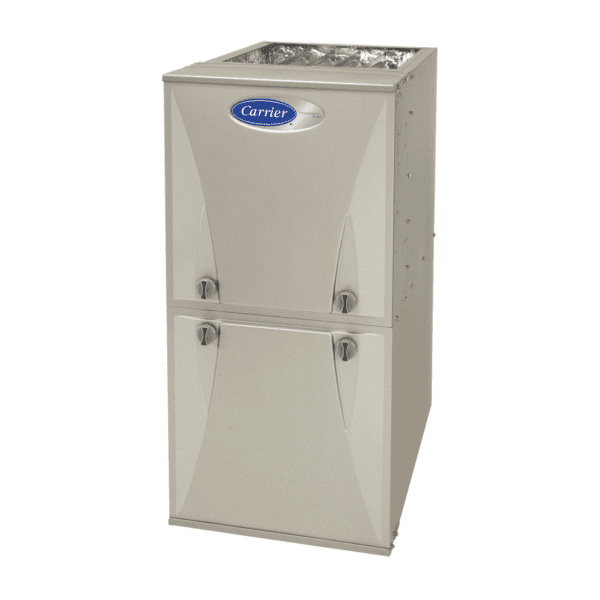

COMFORT 95 GAS FURNACE 59SC5
The Comfort™ 95 condensing gas furnace delivers on energy efficiency, achieving 96.5% AFUE. The ECM blower motor is electrically efficient and additional speed options enhance comfort. It can deliver the warmth and is designed to save you money.
- Up to 96.7% AFUE heating efficiency
- Two-stages of heat for economical operation
- Variable-speed, ECM blower motor for ultimate comfort and ultra-quiet operation
- Ideal Humidity System® technology capable to aid heat pump or air conditioner summer dehumidification
- SmartEvap™ technology works in concert with your cooling system to aid summer dehumidification
- ComfortFan™ technology allows fan-speed choices in “Constant ON” mode
- Comfort Heat Technology® feature intelligently stages heating cycles to reduce temperature swings and improve efficiency
- Infinity intelligence enables self-configuration and easy troubleshooting with Infinity control
- Fully insulated cabinet
- Advanced temperature control
- Includes air filter cabinet
- 10-year parts limited warranty1
- Lifetime heat exchanger limited warranty2
EFFICIENCY
- Up to 96.7% AFUE
- Select sizes meet ENERGY STAR® qualifications
- Highest degree of electrical efficiency among Carrier furnaces
PERFORMANCE
- Low stage operation up to 90% of time for quiet, energy-efficient operation
- Allows 4 choices of “constant ON” fan speed operation
- Hybrid Heat® compatible
- Exceptional year-round humidity management when installed as part of complete Infinity system with added humidifier
- Can help boost cooling SEER efficiency when matched with appropriate cooling system components

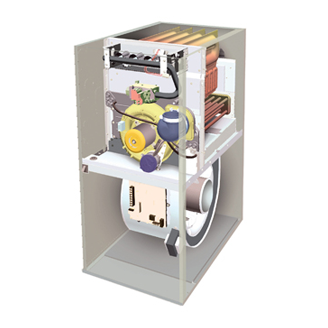

TECHNOLOGY
- Two-stage gas valve
- Variable-speed, ECM blower motor
- Pilot-free, hot surface PowerHeat™ ignition
- Two-speed inducer motor
- Aluminized steel clamshell-style primary heat exchanger
- Stainless steel fin-and-tube design secondary heat exchanger
- Sound reduction: fully insulated cabinet and QuieTech™ noise reduction
- Infinity level advanced diagnostic intelligence
- Recommended control: Infinity control
CAPACITIES
- 60,000-120,000 Btu/h
INSTALLATION
- Flexible installation: upflow, downflow or horizontal
- Versatile venting for tight-fit applications
REQUIREMENTS
- 115 V
- .5″ gas connection
- Convertible to Liquid Propane (LP)
AESTHETICS
- 20-gauge, galvanized steel with appliance finish
- Baked on urethane base coat and polyester top coat paint in taupe metallic
- Dimensions in upflow position: 35″H x width varies by size: 17.5-24.5″ x 30″D
